MECHANICAL DESIGN AND DRAFTING

Garneau Industries Ltd. has a 600 sq. ft. design & drafting office equipped with the latest in 3D CAD parametric design software; Autodesk Inventor Professional.  Our Certified Engineering Technologist is registered with ASET (The Association of Science & Engineering Technology Professionals of Alberta) and has over 25 years of combined industry experience.

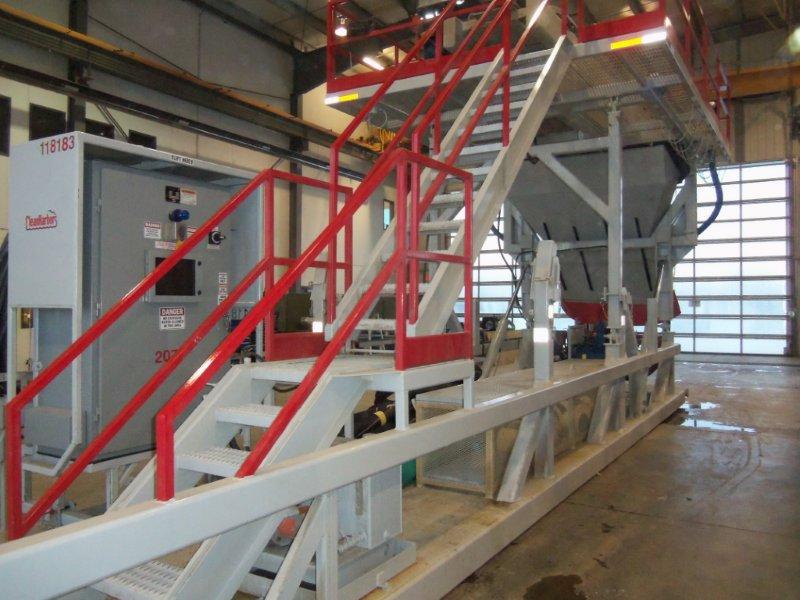

Garneau Industries Ltd. will custom design your oilfield equipment from concept to completion - including the drafting and all detailed shop fabrication drawings to Canadian welding standards.

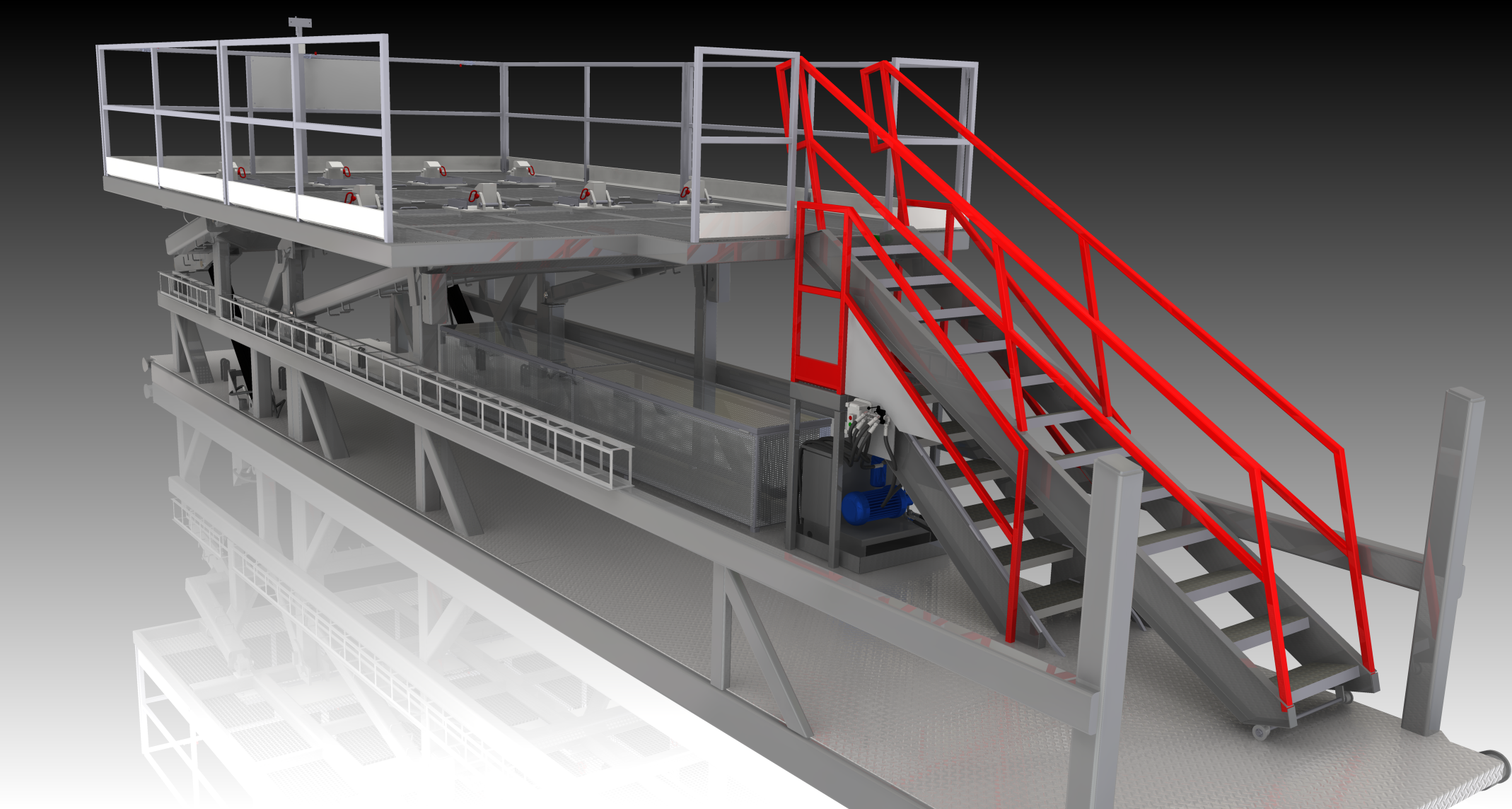

Our high-tech 3D CAD software allows Garneau Industries Ltd. to virtually prototype your next project by building a fully parametric 3D CAD model with functioning & moving components.  We can optimize your design by performing interference checks with other equipment, quickly editing steel member sizes to optimize structural strength/rigidity while reducing weight & providing you with a complete 3D visual model to view prior to starting fabrication.

Paul Garneau
